HOW TO Rip DVD Movies To Your iPod Using Free Software from diveintomark

Updated July 4,2006

2 Insert a DVD of your choice. If DVD Player opens, quit it.

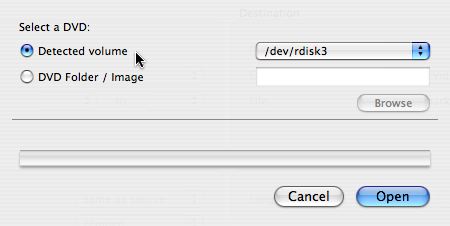

3 Run Handbrake. Select Detected volume, as shown in Figure 1.

[Handbrake source selection dialog]

Figure 1. Selecting the video source in Handbrake

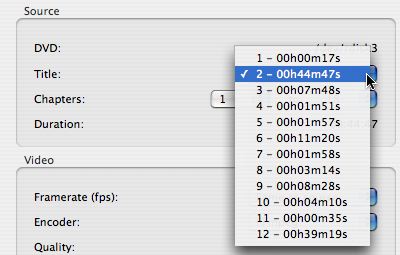

4.Click Open. Handbrake will detect all the titles on the DVD. If you’re ripping a movie, just select the longest title in the list. If you’re ripping a TV show or something with multiple episodes on one disc, then select the episode you want, as shown in Figure 2.

[Handbrake title selection menu]

Figure 2. Selecting a title

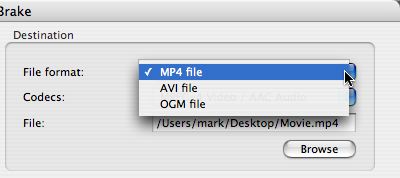

5.In the Destination section, set File Format to MP4 file, as shown in Figure 3.

[Handbrake file format menu]

Figure 3. Selecting the proper file format

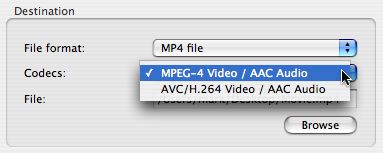

6.Set Codecs to MPEG-4 Video / AAC Audio, as shown in Figure 4.

[Handbrake codecs selection menu]

Figure 4. Selecting the proper codec

7.Note: A previous version of this guide suggested using the “AVC/H.264 Video” codec, but that does not work because the video iPod can not play the H.264 files that Handbrake produces. I have first-hand reports that the MPEG-4 Video codec works correctly. As an added bonus, MPEG-4 encoding is much faster.

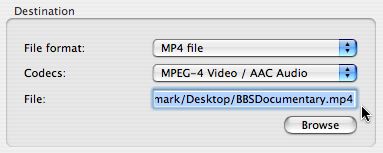

For File, enter the full pathname where you want to save your movie, as shown in Figure 5.

[Handbrake output filename box]

Figure 5. Setting the output filename

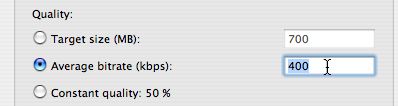

8.In the Video section, set Quality to Average bitrate and enter 400. This can be as high as 768, but unless you squint you probably won’t see much difference. Higher bitrate = higher quality video = larger file size.

[Handbrake video quality box]

Figure 6. Setting the video quality

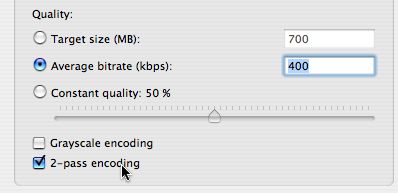

9.Optional - Under Quality, select 2-pass encoding, as shown in Figure 7. This takes twice as long to encode, but it improves the video quality and doesn’t make the file any larger.

[Handbrake 2-pass encoding setting]

Figure 7. Enabling 2-pass encoding

10.In the Audio section, for Language 1, select the audio track in your preferred language, as shown in Figure 8. Given the choice between MPEG and LPCM, choose MPEG.

[Handbrake audio language menu]

Figure 8. Setting the primary language

11.The Sample rate is entirely up to you. Higher sample rate = higher quality audio = larger file size. The video iPod is compatible with any of the sample rates supported by Handbrake.

[Handbrake sample rate menu]

Figure 9. Setting the audio sample rate

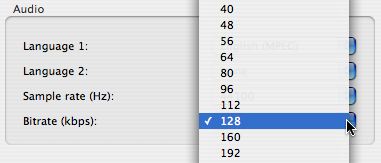

12.For Bitrate, you can keep the default of 128, or select a rate up to 160. Higher rate = higher audio quality = larger file size.

[Handbrake bitrate menu]

Figure 10. Setting the audio bitrate

13.Click Picture Settings. In the Picture Settings dialog, decrease Width until either it reads 320. Handbrake will auto-adjust the height to match. For a full-screen movie, the height will end up at 240; for wide-screen movies, it will be lower.

[Handbrake resize picture settings]

Figure 11. Resizing the movie

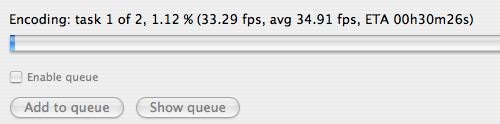

14.Close the Picture Settings dialog and click Rip. Encoding time depends on the speed of your Mac, the length of the movie, and whether you selected 2-pass encoding. Handbrake will display a progress bar, as shown in Figure 12.

[Handbrake progress bar]

Figure 12. Encoding progress

15.When encoding is finished, quit Handbrake.

Run iTunes. Find the .mp4 file that Handbrake created and drag it into your iTunes library, or select Add to Library… from the File menu and select the encoded movie.
